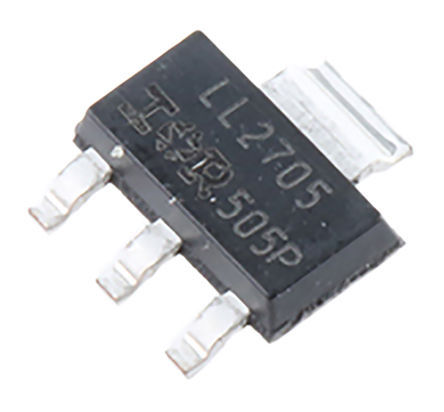

Image is for your reference only,please check specifications for details

AUIPS1041LTR - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC33232047
Category:
Power Distribution
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 1.95A 0.08Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
323 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.8

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The AUIPS1041(L)(R) and AUIPS1042G are three terminal Intelligent Power Switches (IPS) featuring low side MOSFETs with over-current, over-temperature, ESD protection and drain to source active clamp. The AUIPS1042G is a dual channel device while the AUIPS1041 is a single channel. These devices offer protections and the high reliability required in harsh environments. Each switch provides efficient protection by turning OFF the power MOSFET when the temperature exceeds 165°C or when the drain current reaches 4.5A. The device restarts once the input is cycled. A serial resistance connected to the input provides the diagnostic. The avalanche capability is significantly enhanced by the active clamp and covers most inductive load demagnetizations.
Benefits:
Short-circuit protection
Over-temperature protection
12V application
Slow and fast devices
Active clamp
Low current and logic level input
ESD protection
Optimized Turn On/Off for EMI
Diagnostic on the input current

Show

AUIPS1041LTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Input Voltage (DC)	6.00 V
Number of Positions	4 Position
Power Dissipation	2000 mW
Part Family	AUIPS1041L
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	6 V
	Show
Size-Length	6.3 mm
Size-Width	3.3 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
