Image is for your reference only,please check specifications for details
- ADF5355BCPZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC253740
-
Category:Clock Generator IC
-
Package:LFCSP-32
-
Datasheet:Datasheet 3D Model
-
Description:Clock Generator 10MHz to 500MHz Input 14000MHz Output 32Pin LFCSP EP Tray
-
Stock Locations:
-
Availability:1,288 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 99.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

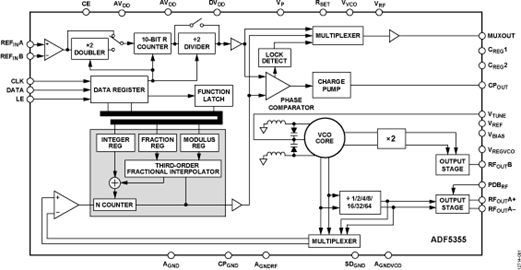

- The ADF5355 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers when used with an external loop filter and an external reference frequency. The wideband microwave VCO design permits frequency operation from 6.8 GHz to 13.6 GHz at one radio frequency (RF) output. A series of frequency dividers at another frequency output permits operation from 54 MHz to 6800 MHz.
- The ADF5355 has an integrated VCO with a fundamental output frequency ranging from 3400 MHz to 6800 MHz. In addition, the VCO frequency is connected to divide by 1, 2, 4, 8, 16, 32, or 64 circuits that allow the user to generate RF output frequencies as low as 54 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin and software controllable.
- Control of all on-chip registers is through a simple 3-wire interface. The ADF5355 operates with analog and digital power supplies ranging from 3.15 V to 3.45 V, with charge pump and VCO supplies from 4.75 V to 5.25 V. The ADF5355 also contains hardware and software power-down modes.
- **Applications**
- Wireless infrastructure (W-CDMA, TD-SCDMA, WiMAX, GSM, PCS, DCS, DECT)
- Point to point/point to multipoint microwave links
- Satellites/VSATs
- Test equipment/instrumentation
- Clock generation
- ### Features and Benefits
- RF output frequency range: 54 MHz to 13,600 MHz
- Fractional-N synthesizer and integer-N synthesizer
- High resolution 38-bit modulus
- Phase frequency detector (PFD) operation to 125 MHz
- Reference frequency operation to 600 MHz
- Maintains frequency lock over −40°C to +85°C
- Low phase noise, voltage controlled oscillator (VCO)
- Programmable divide by 1, 2, 4, 8, 16, 32, or 64 output
- Analog and digital power supplies: 3.3 V
- Charge pump and VCO power supplies: 5.0 V, typical
- Logic compatibility: 1.8 V
- Programmable dual modulus prescaler of 4/5 or 8/9
- Programmable output power level
- RF output mute function
- Analog and digital lock detect
- Supported in the ADIsimPLL design tool
ADF5355BCPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LFCSP-32 |
| Frequency | 13.6 GHz |
| Supply Voltage (DC) | 3.15V (min) |
| Number of Outputs | 3 Output |
| Number of Circuits | 1 Circuit |
| Number of Positions | 32 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.15V ~ 3.45V |
| Supply Voltage (Max) | 3.45 V |
| Supply Voltage (Min) | 3.15 V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 5.1 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
