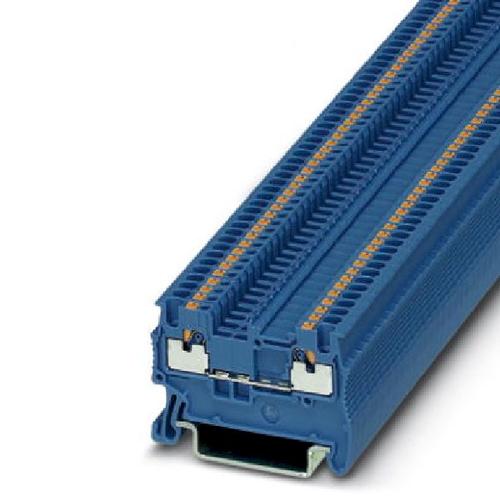

Image is for your reference only,please check specifications for details
- 3208126 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC49894866
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Conn; TermBlk; DINRail; Feed-Thru; Push-InConn; 3.5mm; 26-14AWG; Blue; NS35/7.5, NS35/15
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Product Features**
- * The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- * The compact design and front connection enable wiring in a confined space
- * In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
- * Tested for railway applications
3208126 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Wire Gauge | 14AWG ~ 26AWG |
| Current Rating | 17.5 A |
| Number of Circuits | 2 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 17.5 A |
| Voltage Rating (Max) | 500 V |
| Operating Voltage (Max) | 500 V |
| Show | |
| Size-Length | 45 mm |
| Size-Width | 3.5 mm |
| Size-Height | 30.5 mm |
| Housing Color | Blue |
| Color | Blue |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
