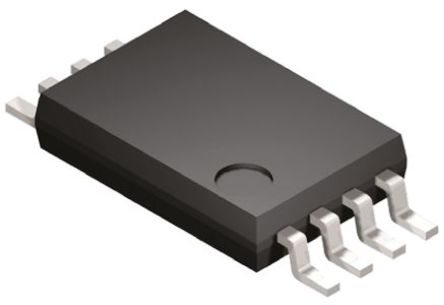

TSC103IPT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC4851619
Category:
Amplifier, Buffer IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSC103IPT Current Sense Amplifier, 1 Amplifier, 15µA, TSSOP, 8Pins, -40℃, 125℃
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSC103 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is adjustable to four different values from 20 V/V up to 100 V/V by two selection pins.
Wide input common-mode voltage range, low quiescent current, and tiny TSSOP8 packaging enable use in a wide variety of applications.
The input common-mode and power-supply voltages are independent. The common-mode voltage can range from 2.9 V to 70 V in the single-supply configuration or be offset by an adjustable voltage supplied on the Vcc- pin in the dual-supply configuration.
With a current consumption lower than 360 μA and a virtually null input leakage current in standby mode, the power consumption in the applications is minimized.
**Key Features**
Independent supply and input common-mode voltages
Wide common-mode operating range: 2.9 V to 70 V in single-supply configuration,-2.1 V to 65 V in dual-supply configuration
Wide common-mode surviving range: -16 V to 75 V (reversed battery and load-dump conditions)
Supply voltage range: 2.7 to 5.5 V in single-supply configuration
Low current consumption: ICC max = 360 μA
Pin selectable gain: 20 V/V, 25 V/V, 50 V/V or 100 V/V
Buffered output

Show

TSC103IPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	2.70V (min)
Output Current	26 mA
Supply Current	200 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	105 dB
Bandwidth	700 kHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	0.7 MHz
Input Offset Voltage	500 µV
Input Bias Current	10 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	700 kHz
Minimum CMRR Range	90 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	4.5 mm
Size-Width	3.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
