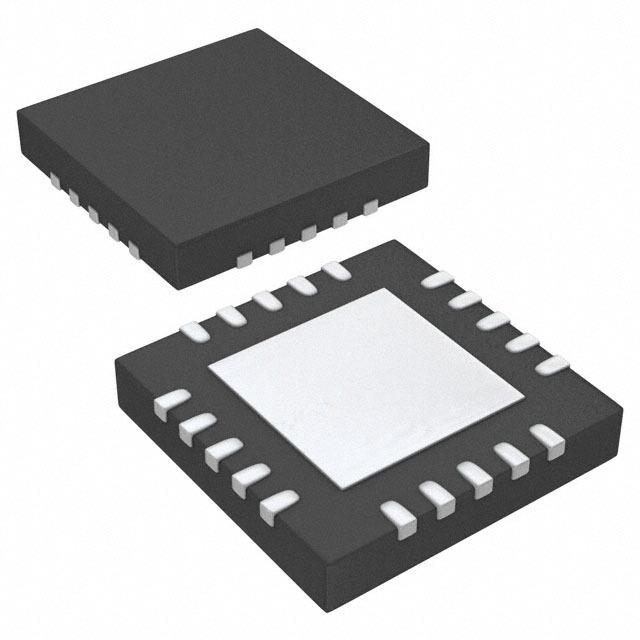

DRV601RTJR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4876637
Category:
Audio Amplifier IC
Package:
WQFN-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV601RTJR Audio Power Amplifier, AB, 2Channel, 1.8V to 4.5V, QFN, 20Pins
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DRV601 is a stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The device is ideal for single supply electronics where size and cost are critical design parameters.
The DRV601 is capable of driving 2 Vrms into a 600-Ω load at 3.3 V. The device has external gain setting resistors, that support a gain range of -1V/V to -10V/V, and line outputs that has ±8-kV IEC ESD protection. The device has independent shutdown control for the right and left audio channels.
FEATURES
• External Gain Setting Resistors
• Space Saving Package
– 20-Pin, 4 mm × 4 mm Thin QFN, Thermally Optimized PowerPAD™ Package
• Ground-Referenced Outputs Eliminate DC-Blocking Capacitor
– Reduce Board Area
– Reduce Component Cost
– Improve THD+N Performance
– No Degradation of Low-Frequency
Response Due to Output Capacitors
• Wide Power Supply Range: 1.8 V to 4.5 V
• 2 Vrms/Ch Output Voltage into 600 Ω at 3.3 V supply
• Independent Right and Left Channel Shutdown Control
• Short-Circuit and Thermal Protection
• Pop Reduction Circuitry
APPLICATIONS
• Set-Top Boxes
• CD / DVD Players
• DVD-Receivers
• HTIB
• PDP / LCD TV"s

Show

DRV601RTJR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	WQFN-20
Number of Channels	2 Channel
Quiescent Current	8.00 mA
Slew Rate	2.20 V/μs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 4.5V
	Show
Size-Height	0.73 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
