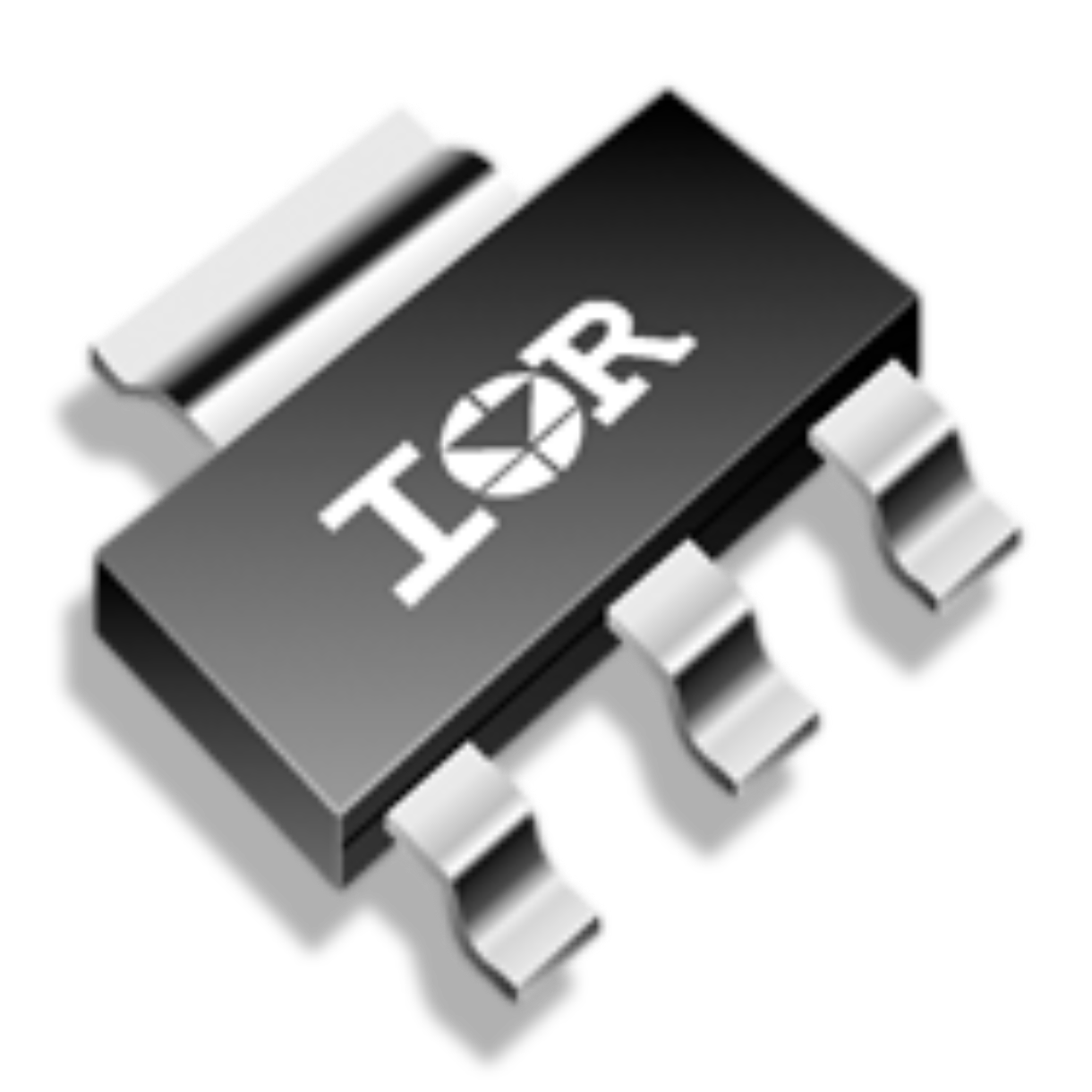

Image is for your reference only,please check specifications for details

AUIPS2051LTR - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9753959
Category:
Power Distribution
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 0.9A 0.25Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
1,036 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.46

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AUIPS2051L is a 3-terminal low-side Intelligent Power Switch that features a MOSFET with over-current, over-temperature, ESD protection and drain to source active clamp. This device offers protection and the high reliability required in harsh environments. The switch provides efficient protection by turning-OFF the power MOSFET when the temperature exceeds 165°C or when the drain current reaches 1.8A. The device restarts once the input is cycled. A serial resistance connected to the input provides the diagnostic. The avalanche capability is significantly enhanced by the active clamp and covers most inductive load demagnetizations.
Active clamp
Low current and logic level input
Optimized turn ON/OFF for EMI
Diagnostic on the input current
ESD sensitive device, take proper precaution while handling the device.

Show

AUIPS2051LTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Current	0.9 A
Number of Positions	3 Position
Power Dissipation	2 W
Rise Time	2.5 µs
Output Current (Max)	900 mA
Output Current (Min)	0.9 A
Fall Time	2.5 µs
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Input Voltage	5.5 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
