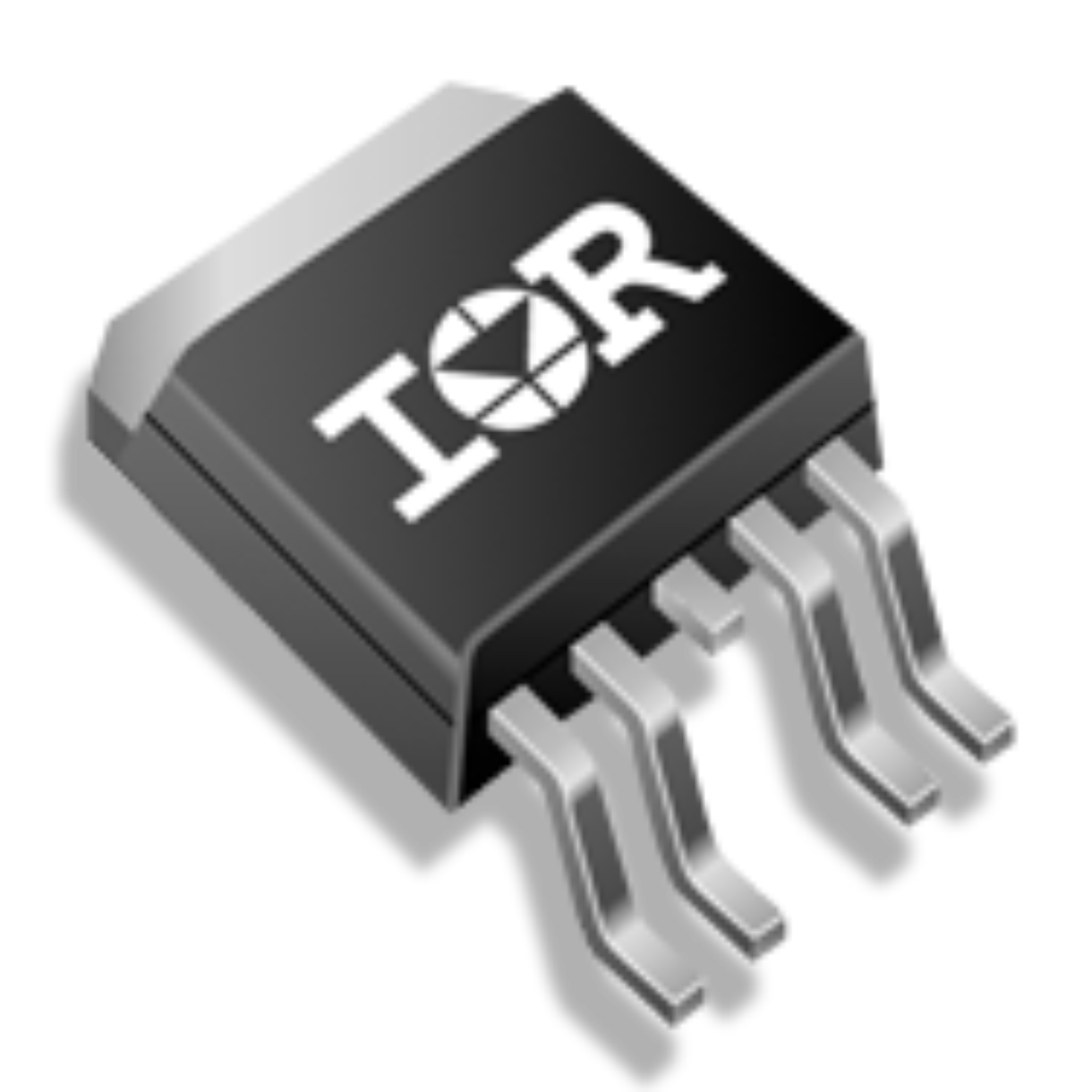

Image is for your reference only,please check specifications for details

AUIPS7111S - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC42839917
Category:
Power Distribution
Package:
TO-263-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 10A 0.006Ω Automotive 5Pin(4+Tab) D2PAK Tube
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AUIPS7111S is a 4-terminal 1-channel fully protected current sense High-side Switch features over-current, over-temperature, ESD protection and drain to source active clamp. When the input voltage VCC to VIN is higher than the specified threshold then the output power MOSFET is turned-ON. When the VCC to VIN is lower than the specified VIL threshold then the output MOSFET is turned-OFF. The IFB pin is used for current sensing.
Active clamp
Low current
Reverse battery
Optimized turn ON/OFF for EMI
Suitable for 24V systems
ESD sensitive device, take proper precaution while handling the device.

Show

AUIPS7111S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Power Rating	2.5 W
Number of Outputs	1 Output
Number of Positions	5 Position
Power Dissipation	2500 mW
Output Current (Max)	10 A
Output Current (Min)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Supply Voltage	8V ~ 50V
Input Voltage	50 V
	Show
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
