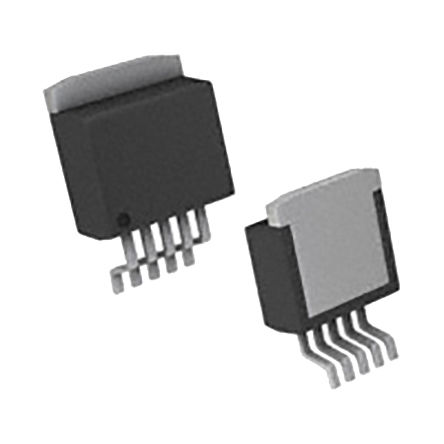

AUIR3315S - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC45828166
Category:
Power Distribution
Package:
TO-263-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 14A 0.016Ω Automotive 5Pin(4+Tab) D2PAK T/R
Stock Locations:
Availability:
881 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 50.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AUIR3315S is a 4-terminal fully protected high-side Programmable Switch for current sense and the input signal is referenced to VCC. When the input voltage VCC to VIN is higher than the specified threshold, the output power MOSFET is turned-ON. When the VCC to VIN is lower than the specified VIL threshold, the output MOSFET is turned-OFF. A current proportional to the power MOSFET current is sourced to the IFB pin. Over-current shutdown occurs when VIFB to VIN >4.7V. The current shutdown threshold is adjusted by selecting the proper RIFB. Either over-current or over-temperature latches OFF the switch. The device is reset by pulling the input pin high.
Load current feedback
Programmable over-current shutdown
Active clamp
ESD protection
Reverse battery protection
ESD sensitive device, take proper precaution while handling the device.

Show

AUIR3315S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Power Rating	2 W
Number of Outputs	1 Output
Output Current	14 A
Number of Positions	5 Position
Power Dissipation	2 W
Input Voltage (Min)	6 V
Output Current (Max)	14 A
Output Current (Min)	14 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Input Voltage	32 V
	Show
Size-Length	10.67 mm
Size-Width	11.33 mm
Size-Height	4.83 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
