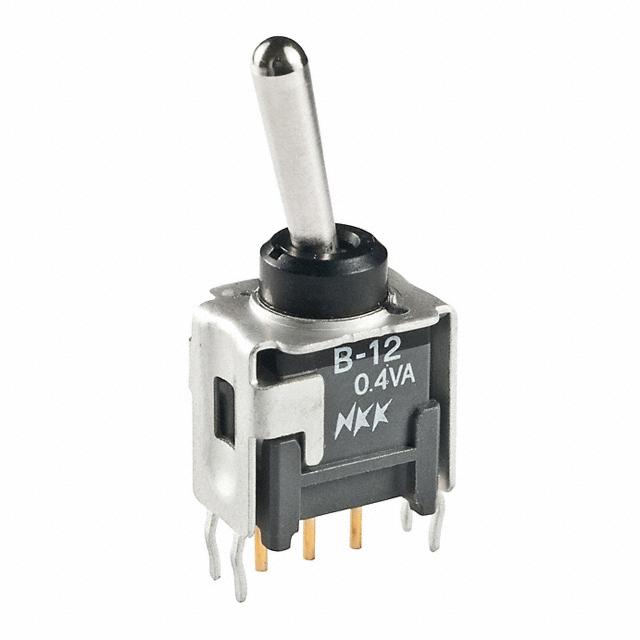

B12AB - NKK
Manufacturer:
NKK
ManyChip's Part#:
MC21352487
Category:
Toggle Switch, Switch Toggle
Package:
100
Datasheet:
Datasheet 3D Model
Description:
Toggle Switch (On-None-On) Single Pole Double Throw Bat PC Pins 0.1A 28VAC 28V Through Hole
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PC Mount, epoxy sealed terminals.*Electrical Capacity:** 0.4 VA max. @ 28 VAC/VDC max. **Electrical Life:** 50,000 operations min. **Mechanical Life: **100,000 operations min. 50,000 operations min. for locking lever models.
* Smallest Locking Lever Toggle
* IP65 Rating for Threaded Bushing Versions
* Bracketed Models Are ESD Protected

Show

B12AB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	100
Contact Plating	Gold
Voltage Rating (DC)	28 V
Actuator Type	Standard
Voltage Rating (AC)	28 V
Insulation Resistance	500 MΩ
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPDT
Current Rating (Max)	.1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	28 V
Voltage Rating (DC Max)	28 V
Voltage Rating (AC Max)	28 V
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Length	10.56 mm
Size-Width	8 mm
Size-Height	23.1 mm
Contact Material	Phosphor Bronze
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
