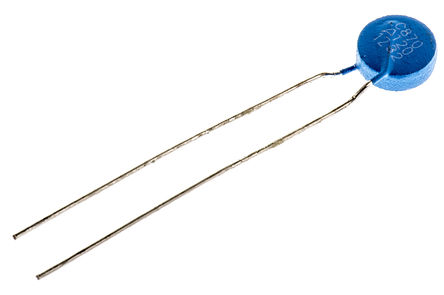

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

A cheap and effective way to measure temperature, this B59870C120A70 thermistor from EPCOS belongs in your design. This part has a temperature range of -40 °C to 125 °C. It has 2 terminals. This product is 5(Max) mm deep.

Show

B59870C120A70 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Disc
Voltage Rating (DC)	265 V
Operating Voltage	265 V
Capacitance Tolerance	±25 %
Resistance	25 Ω
Resistance Tolerance	±25 %
Trip Current	200 mA
Holding Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Lead Length	35 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
