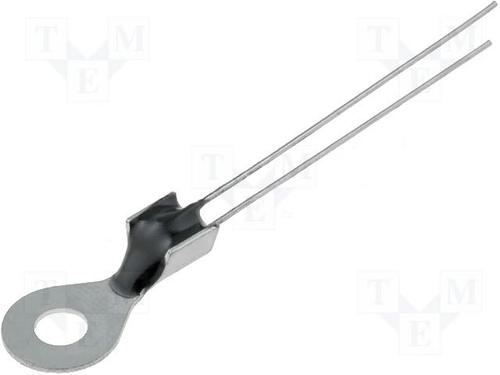

Image is for your reference only,please check specifications for details

B59901D0090A040 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC102939736
Category:
Thermistor
Datasheet:
Datasheet 3D Model
Description:
EPCOS B59901D0090A040 PTC Thermistor, 500Ω, Through Hole, -25% to +25%, B59901 Series
Stock Locations:
Availability:
1,722 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B59901D0090A040 is a 2-pin PTC Thermistor with epoxy resin coating sensor and tinned leads terminals. This B59901 series through hole mounting thermistor features metal tag that permits good thermal coupling and thus short response time. Characteristics for sensing temperatures Tsense = 90 to 130°C conform with DIN 44081. Soldering can use rosin-type flux or non-activated flux. The soldering due to insufficient preheating may cause ceramic cracks. Suitable for limit temperature sensor.
Metal tag for easy mounting
Avoid contamination of thermistor surface during storage, handling and processing. Do not touch components with bare hands.
Gloves are recommended.

Show

B59901D0090A040 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Operating Voltage	30.0V (max)
Resistance	100 Ω
Operating Temperature (Max)	40 ℃
Operating Temperature (Min)	0 ℃
Operating Voltage (Max)	30 VDC
	Show
Size-Height	20 mm
Operating Temperature	0℃ ~ 40℃
Product Lifecycle Status	Obsolete
Packaging	Strip
RoHS	Exempt
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
