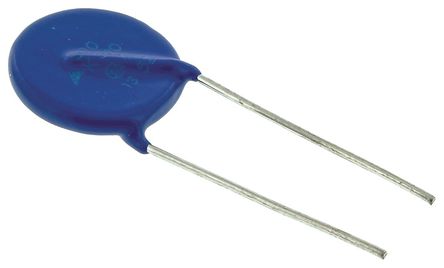

Image is for your reference only,please check specifications for details

B72220S0301K101 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC11922621
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72220S0301K101 TVS Varistor, 300V, 385V, StandarD Series, 775V, Disc 20mm, Metal Oxide Varistor (MOV)
Stock Locations:
Availability:
116 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Epcos B722 StandarD series are round shaped radial leaded, SIOV metal oxide varistors. These varistors have wide operating voltage range from 11VRMS to 1100VRMS. B722 series varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. The voltage dependent characteristics enable these varistors to protect against high transient voltage spikes.
High surge current ratings up to 8KA
Peak energy range from 0.3J to 410J
UL, CSA, VDE, CQC (S05/07, S10/S14, S20), IEC approved
Operating temperature range -40°C to 85°C
Endurance of 1000h at 85°C
±10% and ±5% varistor voltage tolerance
UL94V-0 rated flame retardant and epoxy resin coated

Show

B72220S0301K101 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	385 V
Voltage Rating (AC)	300 V
Capacitance	580 pF
Power Rating	1 W
Clamping Voltage	775 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	385 V
Voltage Rating (AC Max)	300 V
	Show
Size-Width	5.6 mm
Size-Height	25.5 mm
Lead Length	30 mm
Size-Thickness	5.6 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
