B72500D0090A060 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC13192604
Category:
TVS Diode
Package:
SOD-523
Datasheet:
Datasheet 3D Model
Description:

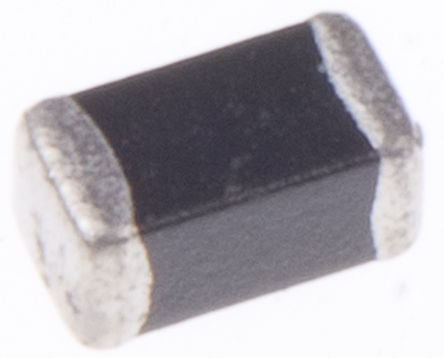

EPCOS B72500D0090A060 ESD Protection Device, TVS, 30V, 0603, 2Pins, 9V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B72500D0090A060 is a CeraDiode® reliable ESD Protection Diode optimized specifically for high performance in electrostatic discharge (ESD) applications. The device has a non-linear voltage/current characteristic that is highly optimized for effectively suppressing extremely fast voltage transients. The device offers superior parametric stability over the complete operating range of -40 to 85°C. It is connected from signal/data-line to ground routes both positive and negative ESD transitions safely to the ground plane. This technique eliminates the need to route ESD charge into the power plane, possibility damaging nearby integrated circuits.
ESD protection according to IEC 61000-4-2 (level 4)
Endurance specification up to 3000 ESD pulses
Suitable for unidirectional and bidirectional lines
Bidirectional ESD protection in a two-pin device
Routes all ESD events, both positive and negative, safely to ground
Suitable for DC working voltages up to 22V
No de-rating of maximum ratings up to 85°C
<0.5ns Extremely fast response time

Show

B72500D0090A060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	SOD-523
Operating Voltage	9 V
Capacitance	220 pF
Breakdown Voltage	6.40 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Clamping Voltage	30 V
Test Current	1 mA
Peak Pulse Power	1600 W
Reverse Breakdown Voltage	10 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	9 V
	Show
Size-Length	1.75 mm
Size-Width	0.9 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
