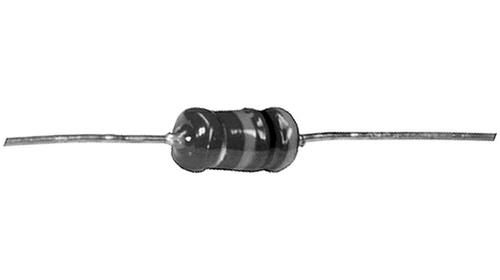

B82144A2103K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC46941600
Category:
Inductor
Package:
Axial
Datasheet:
Datasheet 3D Model
Description:
RF Choke Drum Core 10uH 10% 1MHz 60Q-Factor Ferrite 1.4A 220mOhm DCR AXL Automotive T/R
Stock Locations:
Availability:
1,100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82144A series from EPCOS are axial leaded bobbin core (BC) RF chokes for general purpose applications. These chokes are made up of large ferrite drum core with enamel copper wire winding. B82144A series RF chokes are suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems and energy saving lamps.
Wide inductance value ranges from 1µH to 10000µH
Rated current range from 20mA to 2200mA
Operating temperature range 40°C
±3%, ±5% and ±10% tolerance
Base material is CuAg0.1
Compliant to IEC 60062 standards
Compliant to climatic category IEC 60068-155/125/56

Show

B82144A2103K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Current Rating	1.4 A
Capacitance Tolerance	±10 %
Inductance	10 µH
Self Resonant Frequency	60 MHz
Q-Factor	60.0
Resistance	220 mΩ
Resonant Frequency	60.0 MHz
Inductance Tolerance	±10 %
Test Frequency	1 MHz
DC Resistance (DCR)	≤220 mΩ
Current Rating (DC)	1.4 A
Resistance (DC Max)	0.22 Ω
	Show
Operating Temperature	-55℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
