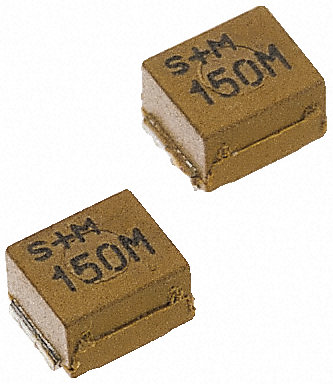

Image is for your reference only,please check specifications for details
- B82422A1332K100 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC12837766
-
Category:Inductor
-
Package:1210
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Chip Molded Wirewound 3.3uH 10% 1MHz 27Q-Factor Ferrite 200mA 1.2Ω DCR 1210 Automotive T/R
-
Stock Locations:
-
Availability:9,232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.29
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SMT-INDUCTOR 1210 3,3 UH 10%
B82422A1332K100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 200 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 3.3 µH |
| Self Resonant Frequency | 110 MHz |
| Q-Factor | 27.0 |
| Resistance | 1.20 Ω |
| Resonant Frequency | 110 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤1.2 Ω |
| Current Rating (DC) | 200 mA |
| Operating Temperature (Max) | 145 ℃ |
| Resistance (DC Max) | 1.2 Ω |
| Show | |
| Size-Length | 3.20 mm |
| Size-Width | 2.5 mm |
| Size-Height | 2 mm |
| Weight | 50.0 mg |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
