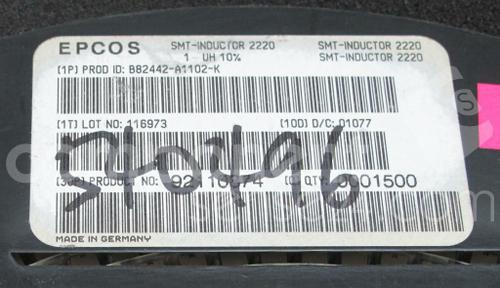

Image is for your reference only,please check specifications for details

B82442A1102K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC70705007
Category:
Inductor
Package:
2220
Datasheet:
Datasheet 3D Model
Description:
Inductor General Purpose Chip Drum Core 1uH 10% 7.96MHz 10Q-Factor Ferrite 1.8A 24mOhm DCR 2220 Blister T/R
Stock Locations:
Availability:
2,022 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.46

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82442A1102K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2220
Current Rating	1.8 A
Capacitance Tolerance	±10 %
Inductance	1 µH
Self Resonant Frequency	95 MHz
Q-Factor	10.0
Resistance	30.0 mΩ
Resonant Frequency	95.0 MHz
Inductance Tolerance	±10 %
Test Frequency	7.96 MHz
DC Resistance (DCR)	≤24 mΩ
Current Rating (DC)	1.8 A
Resistance (DC Max)	0.024 Ω
	Show
Size-Length	5.6 mm
Size-Width	5 mm
Size-Height	5 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
