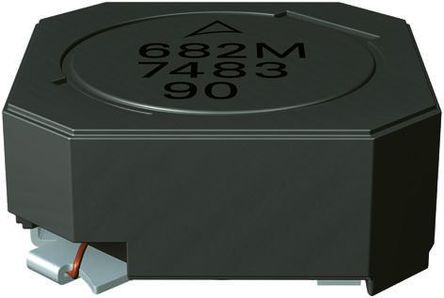

Image is for your reference only,please check specifications for details

B82464G4333M000 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC15091072
Category:
Inductor Surface Mount
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Shielded Wirewound 33uH 20% 100kHz Ferrite 1.85A 75mOhm DCR Automotive T/R
Stock Locations:
Availability:
1,066 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82464G4333M is a surface mount shielded Power Inductor with ferrite core. This B82464G series magnetically shielded inductor features enamel copper wire and winding welded to terminals. This inductor"s terminals are made of CuFe2P base Ag/Sn layer and electro-plated terminals. Supports 0.1MHz frequency and ±20% of inductance tolerance. It is suitable for reflow soldering.
High rated current
Low DC resistance
Qualified to AEC-Q200 standard

Show

B82464G4333M000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Current Rating	1.85 A
Capacitance Tolerance	±20 %
Inductance	33 µH
Resonant Frequency	10.0 MHz
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	0.075 Ω
Current Rating (DC)	1.85 A
Resistance (DC Max)	0.075 Ω
	Show
Size-Length	10.4 mm
Size-Width	10.4 mm
Size-Height	4.8 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
