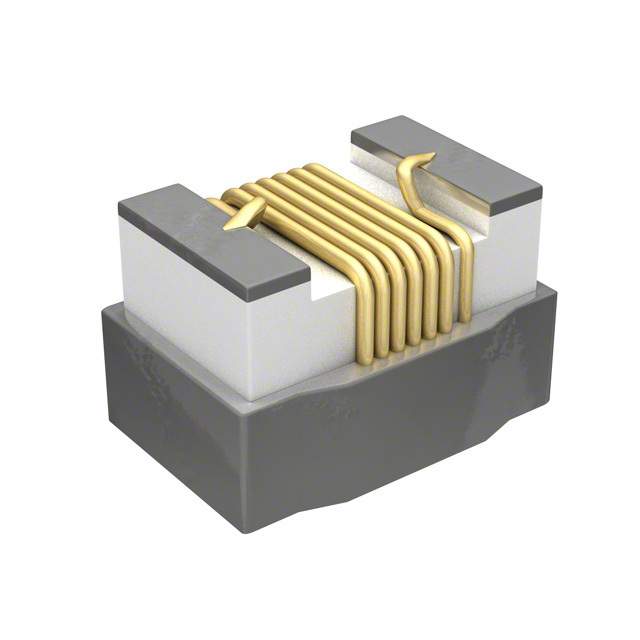

Image is for your reference only,please check specifications for details

B82498F1222J - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC90219134
Category:
Inductor
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
Inductor Chip Molded Wirewound 2.2uH 5% 7.96MHz 20Q-Factor Ferrite 130mA 1.6Ω DCR 0805 Blister T/R
Stock Locations:
Availability:
2,501 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82498F1222J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	130 mA
Capacitance Tolerance	±5 %
Inductance	2.2 µH
Self Resonant Frequency	330 MHz
Q-Factor	20.0
Resistance	2.00 Ω
Resonant Frequency	225 MHz
Shielding	No
Inductance Tolerance	±5 %
Test Frequency	7.96 MHz
DC Resistance (DCR)	≤1.6 Ω
Current Rating (DC)	130 mA
Resistance (DC Max)	1.6 Ω
	Show
Size-Length	2.3 mm
Size-Width	1.3 mm
Size-Height	1.4 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
