Description

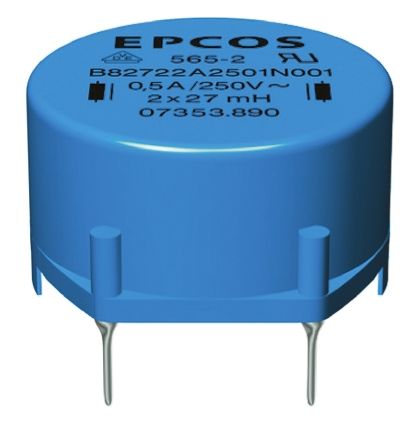

- The B82722A2202N1 is a 2A current-compensated ring core Common Mode Choke Filter suitable for wave soldering. It has ferrite core with epoxy coating, polycarbonate case, polyurethane potting and sector winding, hot dipped Ni and Sn layer composition CuNi18Zn20 base terminal.
- High resonance frequency due to special winding technique
- Approximate 1% stray inductance for symmetrical interference suppression
- Design complies with EN 60938-2 and UL 1283
- UL94V-0 Flammability rating
- Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
B82722A2202N001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Operating Voltage | 250 VAC |
| Current Rating | 2 A |
| Capacitance Tolerance | ±30 % |
| Orientation | Horizontal |
| Flammability Rating | UL 94 V-0 |
| Inductance | 2.2 mH |
| Resistance | 130 mΩ |
| Test Frequency | 10 kHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 250 VAC |
| Resistance (DC Max) | 130 mΩ |
| Show | |
| Size-Length | 22.7 mm |
| Size-Width | 22.3 mm |
| Size-Height | 13.3 mm |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
