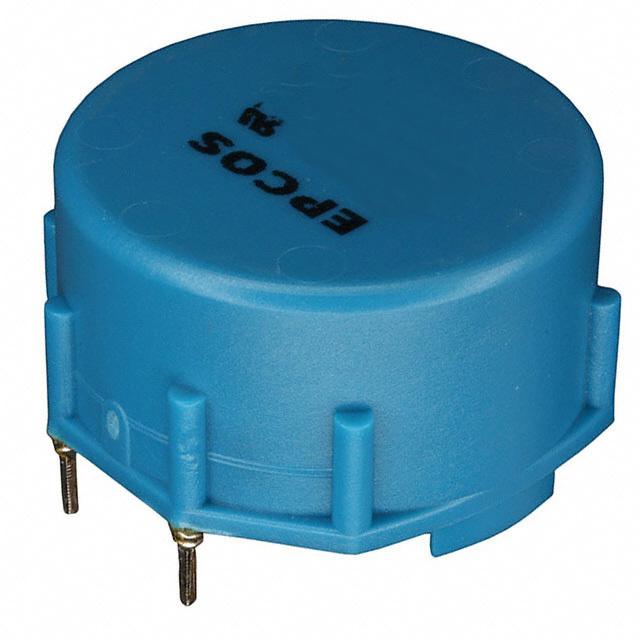

Image is for your reference only,please check specifications for details

B82725A2103N1 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC80745977
Category:
Inductor Choke
Package:
Horizontal, 4 PC Pin
Datasheet:
Datasheet 3D Model
Description:
Common Mode Choke Through Hole Power Line 10A 2 Lines 14mOhm (Typ) -40℃ ~ 125℃
Stock Locations:
Availability:
274 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.45

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82725A2103N1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Horizontal, 4 PC Pin
Voltage Rating (AC)	250 V
Current Rating	10 A
Flammability Rating	UL 94 V-0
Inductance	1.8 mH
Resistance	14.0 mΩ
Inductance Tolerance	±30 %
Test Frequency	10 kHz
DC Resistance (DCR)	14 mΩ
Current Rating (Max)	10 A
Current Rating (DC)	10 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	0.02 Ω
	Show
Size-Height	25 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
