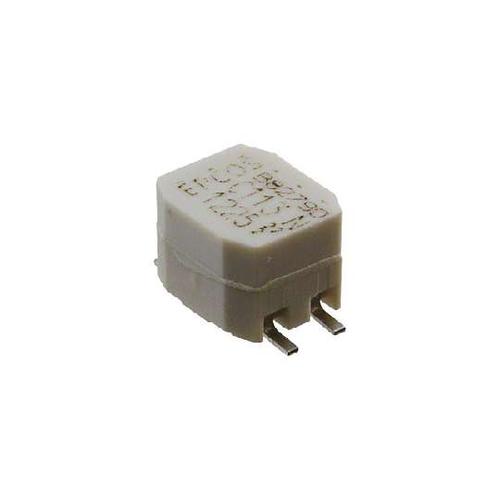

Image is for your reference only,please check specifications for details
- B82790C113N201 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC60508866
-
Category:Inductor Choke
-
Package:Horizontal, 4 Gull Wing
-
Datasheet:Datasheet 3D Model
-
Description:Common Mode Chokes Dual 11uH 100kHz 500mA 80mOhm DCR SMD Automotive T/R
-
Stock Locations:
-
Availability:1,323 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.66
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
B82790C113N201 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | Horizontal, 4 Gull Wing |
| Voltage Rating (DC) | 80 V |
| Voltage Rating (AC) | 42 V |
| Flammability Rating | UL 94 V-0 |
| Inductance | 11 µH |
| Resistance | 120 mΩ |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 80 mΩ |
| Current Rating (Max) | 500 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 42 VAC |
| Show | |
| Size-Length | 9 mm |
| Size-Width | 6 mm |
| Size-Height | 5.2 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
