Description

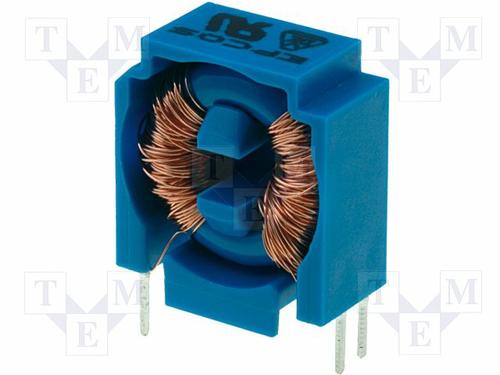

The B82791H series current-compensated ring core double Power Line Choke suitable for suppression of common-mode interference, electronic ballast in lamp and switch-mode power applications.
Ferrite core with epoxy coating
Sector winding
Without potting
High resonance frequency due to special winding technique and omission of potting
1.5% Stray inductance for symmetrical interference suppression
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283

Show

B82791H2301N001 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Through Hole
Current Rating	300 mA
Orientation	Vertical
Inductance	30 mH
Resistance	0.22 Ω
Test Frequency	10 kHz
DC Resistance (DCR)	2.2 Ω
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
	Show
Size-Length	15.3 mm
Size-Width	7.4 mm
Size-Height	17.6 mm
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
