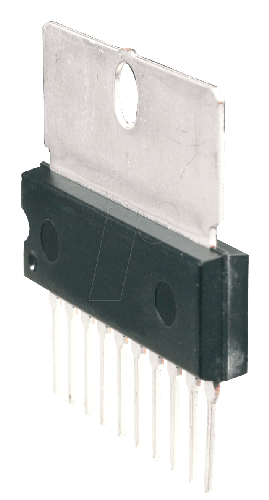

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Reversible motor driver
The BA6209 and BA6209N are reversible-motor drivers suitable for brush motors. Two logic inputs allow three output modes : forward, reverse, and braking. The motor revolving speed can be set arbitrarily by controlling the voltage applied to the motor with the control pin voltage VR.
Features
1) Power transistors can handle a large current (1.6A maximally).
2) Brake is applied when stopping the motor.
3) Built-in function to absorb rush currents generated by reversing and braking.
4) Motor speed controlling pin.
5) Small standby current.
(VCC= 12V, IO= 5.5mA typically)
6) Stable operation during mode changes either from forward to reverse or vice versa.
7) Interface with CMOS devices.
Applications
VCRs and cassette tape recorders

Show
