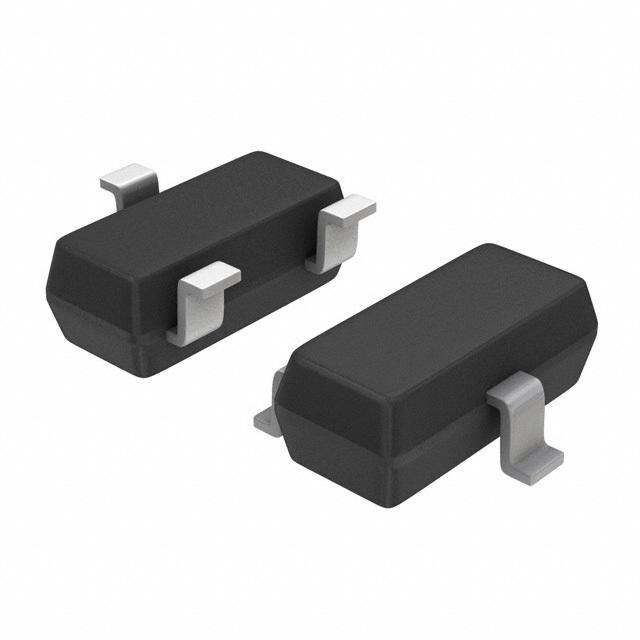

Image is for your reference only,please check specifications for details
- BAS21LT1 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC97456730
-
Category:TVS Diode
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:0.2A, 250V, SILICON, SIGNAL DIODE, TO-236AB, CASE 318-08, TO-236, 3Pin
-
Stock Locations:
-
Availability:207 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.02
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- High Voltage
- Switching Diode Device Marking:
- • BAS19LT1 = JP
- • BAS20LT1 = JR
- • BAS21LT1 = JS
- • BAS21DW5T1 = JS
- Features
- • Pb−Free Packages are Available
BAS21LT1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Capacitance | 5.00 pF |
| Output Current | ≤200 mA |
| Forward Voltage | 1.25V @200mA |
| Polarity | Standard |
| Thermal Resistance | 417℃/W (RθJA) |
| Reverse recovery time | 50 ns |
| Maximum Forward Voltage (Max) | 1.25V @200mA |
| Forward Current (Max) | 0.2 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 385 mW |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
