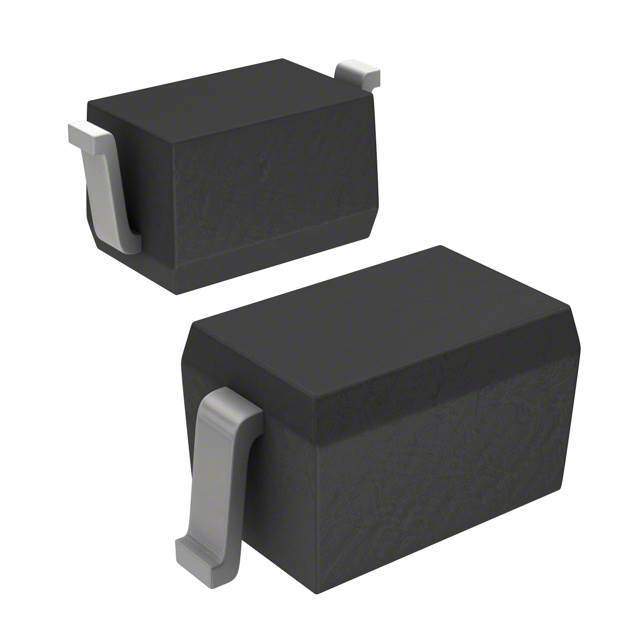

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BAT30JFILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Voltage Rating (DC)	30.0 V
Current Rating	300 mA
Capacitance	22.0 pF
Output Current	≤300 mA
Number of Positions	2 Position
Forward Voltage	530mV @300mA
Polarity	Standard
Forward Current	300 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	530mV @300mA
Forward Current (Max)	0.3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
