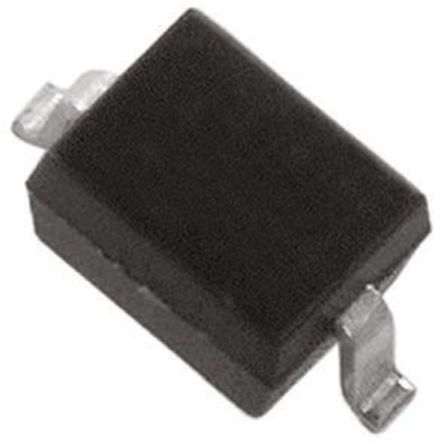

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT54HT1G is a Schottky Barrier Diode designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for handheld and portable applications where space is limited.
Extremely fast switching speed
Low forward voltage
Halogen-free
200mW Total device dissipation

Show

BAT54HT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Capacitance	10.0 pF
Halogen Free Status	Halogen Free
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	0.8 V
Polarity	Standard
Power Dissipation	200 mW
Thermal Resistance	635℃/W (RθJA)
Reverse recovery time	5 ns
Max Breakdown Voltage	30 V
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
