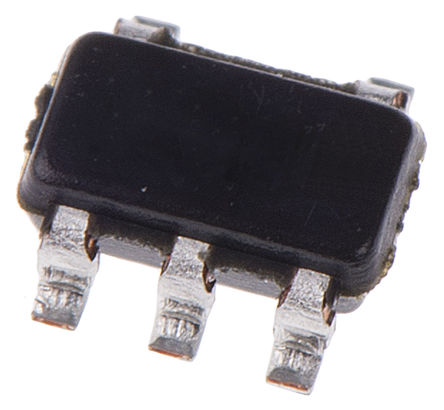

TPS62200DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5751644
Category:
DC to DC Converter
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 6V Step Down Single-Out 0.7V to 6V 0.3A 5Pin SOT-23 T/R
Stock Locations:
Availability:
600 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62200DBVT is a high-efficiency synchronous Step-down Converter ideally suited for portable systems powered by 1-cell Li-ion or 3-cell NiMH/NiCd batteries. The device is also suitable to operate from a standard 3.3 or 5V voltage rail. With an output voltage range of 6V down to 0.7V and up to 300mA output current, the device is ideal to power low voltage DSPs and processors used in PDAs, pocket PCs and smart phones. Under nominal load current, the device operates with a fixed switching frequency of typically 1MHz. At light load currents, the part enters the power save mode operation, the switching frequency is reduced and the quiescent current is typically only 15µA, therefore, it achieves the highest efficiency over the entire load current range. The TPS6220x needs only three small external components. An advanced fast response voltage mode control scheme achieves superior line and load regulation with small ceramic input and output capacitors.
High efficiency over wide load current range
Due to power save mode
Soft-start function
100% Duty cycle low-dropout operation
Dynamic output voltage positioning
Up to 95% High efficiency
15µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62200DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Frequency	1000 kHz
Supply Voltage (DC)	6.00V (max)
Number of Outputs	1 Output
Output Voltage	0.7V ~ 6V
Output Current	300 mA
Number of Positions	5 Position
Quiescent Current	15.0 µA
Number of Regulated Outputs	1 Output
Output Power	400 mW
Switching Frequency	1 MHz
Topology	Buck
Input Voltage (Max)	6 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	6 V
Output Voltage (Min)	700 mV
Output Current (Max)	0.3 A
Maximum Duty Cycle	100 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	3 %
Supply Voltage	2.5 V
Supply Voltage (Min)	2.5 V
Input Voltage	2.5V ~ 6V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
