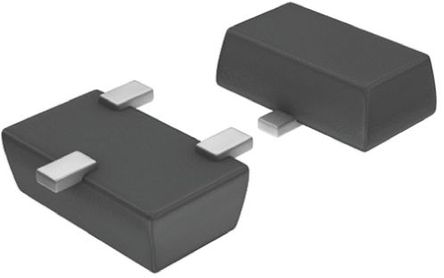

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This Schottky barrier diode is designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for handheld and portable applications where space is limited. The BAT54M3T5G device is a derivative of our popular SOT-23 three-leaded device and is housed in the SOT-723 surface mount package. This device is ideal for low power surface mount applications where board space is at a premium.
Features
---
|
Extremely Fast Switching Speed
Low Forward Voltage
0.35 Volts (Typical) @ IF = 10 mAdc
Reduces Board Space with low profile SOT-723 package
NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

Show

BAT54M3T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-723-3
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	800mV @100mA
Power Dissipation	200 mW
Reverse recovery time	5 ns
Max Repetitive Reverse Voltage (Vrrm)	30V
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Max Reverse Leakage Current (Ir)	2uA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.25 mm
Size-Width	0.85 mm
Size-Height	0.5 mm
Operating Temperature	55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	8000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
