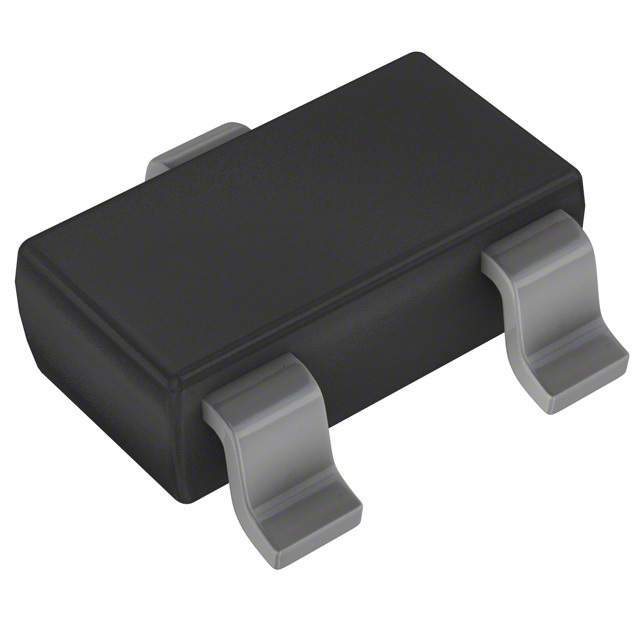

- BAT750 Series 12 A 40 V Surface Mount Schottky Barrier Diode - SOT-23-3
BAT750TA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Number of Positions | 3 Position |
| Forward Voltage | 490 mV |
| Power Dissipation | 350 mW |
| Thermal Resistance | 286℃/W (RθJA) |
| Reverse recovery time | 5 ns |
| Forward Current | 750 mA |
| Max Forward Surge Current (Ifsm) | 5.5 A |
| Maximum Forward Voltage (Max) | 490 mV |
| Forward Current (Max) | 0.75 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 125℃ (Max) |
| Junction Temperature (Max) | 125 ℃ |
| Power Dissipation (Max) | 350 mW |
| Show | |
| Size-Height | 0.98 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
