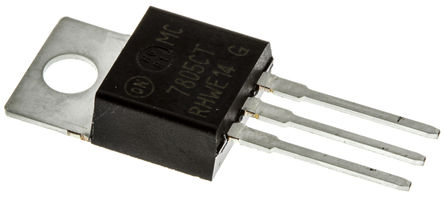

MC7805CTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC76800
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC7805CTG Linear Voltage Regulator, 7805, Fixed, 10V To 35V In, 5V And 1A Out, TO-220-3
Stock Locations:
Availability:
1,242 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This voltage regulator is a monolithic integrated circuit designed as a fixed-voltage regulator for a wide variety of applications including local, on-card regulation. This regulator employs internal current limiting, thermal shutdown, and safe-area compensation. With adequate heat sinking it can deliver output currents in excess of 1A. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
Output Transistor Safe-Area Compensation
Internal Short Circuit Current Limiting
Internal Thermal Overload Protection
No External Components Required

Show

MC7805CTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	35.0V (max)
Operating Voltage	7V ~ 20V
Current Rating	1.00 A
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	20.0V (max)
Output Voltage	5 V
Output Current	1 A
Supply Current	6.5 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	3.2 mA
voltage rating	2V @1A
Thermal Resistance	5℃/W (RθJC)
Input Voltage (Max)	35 V
Input Voltage (Min)	10 V
Output Voltage (Max)	5 V
Output Voltage (Min)	5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	4 %
Supply Voltage	35 V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	7 V
Input Voltage	35 V
	Show
Size-Length	10.28 mm
Size-Width	4.82 mm
Size-Height	30.02 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
