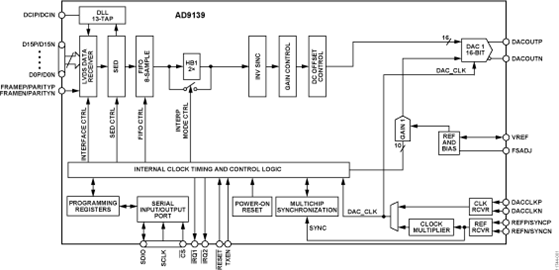

Image is for your reference only,please check specifications for details
- AD9139BCPZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1614263
-
Category:Digital to Analog, DAC IC
-
Package:LFCSP-72
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD9139BCPZ Digital to Analogue Converter, 16Bit, 1.6GSPS, Parallel, Serial, 3.13V to 3.47V, LFCSP, 72Pins
-
Stock Locations:
-
Availability:268 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 43.75
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD9139 is an 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum update rate of 1600 MSPS, permitting multicarrier generation up to the Nyquist frequency. The AD9139 TxDAC+® includes features optimized for wide band communications applications, including 1× and 2× interpolation, a DLL based high speed interface, sample error detection, and parity detection. A 3-wire serial port interface provides for the programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 9 mA up to 33 mA. The AD9139 is available in a 72-lead LFCSP.
- **Product Highlights**
- 1. 575 MHz achievable input signal bandwidth.
- 2. Advanced low spurious and distortion design techniques
- provide high quality synthesis of wideband signals from
- baseband to high intermediate frequencies.
- 3. Very small inherent latency variation simplifies both software
- and hardware design in the system. It allows easy multichip
- synchronization for most applications.
- 4. Low power architecture improves power efficiency.
- **APPLICATIONS**
- Wireless communications: 3G/4G and MC-GSM base stations,
- wideband repeaters, software defined radios
- Wideband communications: point-to-point, LMDS/MMDS
- Transmit diversity/MIMO
- Instrumentation
- Automated test equipment
- ### Features and Benefits
- Selectable 1×, 2× interpolation filter
- Support input signal bandwidth up to 575 MHz
- Very small inherent latency variation: <2 DAC clock cycles
- Proprietary low spurious and distortion design
- 6-carrier GSM ACLR = 79 dBc
- at 200 MHz IF
- SFDR > 85 dBc (bandwidth = 300 MHz) at Zero IF
- Flexible 16-bit LVDS interface
- Supports word and byte load
- Multiple chip synchronization
- Fixed latency and data generator latency compensation
- FIFO eases system timing and includes error detection
- High performance, low noise PLL clock multiplier
- Digital inverse sinc filter
- Low power:
- 700 mW at 1230 MSPS
- 72-lead LFCSP
AD9139BCPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 72 Pin |
| Case/Package | LFCSP-72 |
| Number of Outputs | 1 Output |
| Supply Current | 400 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 72 Position |
| Number of Bits | 16 Bit |
| Sample Rate | 1.60 GHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.13V ~ 3.47V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
