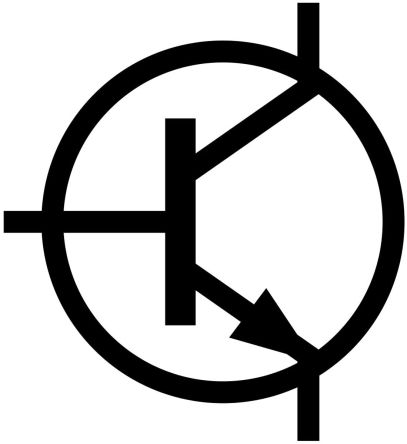

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BCP56 is a NPN Bipolar Transistor designed for general purpose medium power amplifiers and switches requiring collector currents to 1A.
- Sourced from process 39
- -55 to 150°C Operating junction temperature range
BCP56 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-223-4 |
| Frequency | 130 MHz |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 1.5 W |
| Breakdown Voltage (Collector to Emitter) | 80 V |
| Continuous Collector Current | 1A |
| hFE Min | 40 @150mA, 2V |
| hFE Max | 160 |
| Input Power (Max) | 1 W |
| DC Current Gain (hFE) | 25 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1 W |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.6 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
