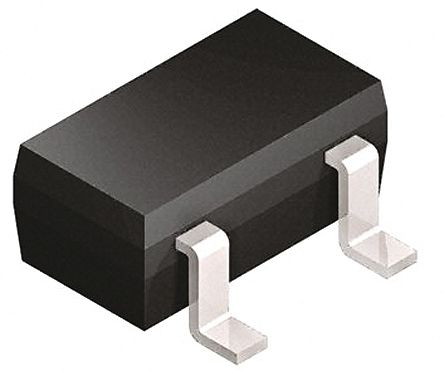

BAV199E6327HTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC5576343
Category:
Small Signal Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON BAV199E6327HTSA1 Small Signal Diode, Dual Isolated, 75V, 200mA, 1.1V, 600ns, 4.5A
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 27/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAV199 from Infineon is surface mount, dual Isolated, silicon low leakage diode in SOT-23 package. These diodes are featured with medium speed switching, applicable at low leakage and switching applications.
Automotive grade AEC-Q101 qualified
Maximum repetitive reverse voltage of 85V
Power dissipation is 330mW
Operating junction temperature of 150°C
Non repetitive peak forward surge current is 4.5A
Forward voltage of 1.25V at IF 150mA

Show

BAV199E6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	70.0 V
Capacitance	2.00 pF
Power Rating	350 mW
Breakdown Voltage	85.0 V
Number of Positions	3 Position
Forward Voltage	1250 mV
Power Dissipation	330 mW
Reverse recovery time	1.5 µs
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4.5 A
Maximum Forward Voltage (Max)	1.1 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	330 mW
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.9 mm
Material	Silicon
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
