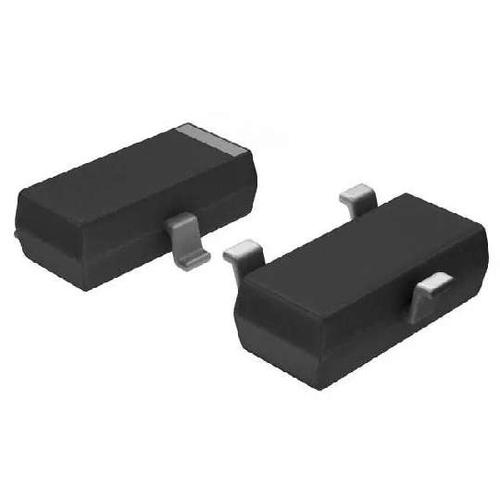

Image is for your reference only,please check specifications for details
- BAV99T116 - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC14192000
-
Category:Diode Array, TVS Diode Array
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:Diode Switching 85V 0.45A Automotive 3Pin SOT-23 T/R
-
Stock Locations:
-
Availability:278 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.07
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Array 1 Pair Series Connection Standard 75V 215mA Surface Mount TO-236-3, SC-59, SOT-23-3
BAV99T116 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 75.0 V |
| Current Rating | 215 mA |
| Capacitance | 1.50 pF |
| Forward Voltage | 1.25V @150mA |
| Power Dissipation | 300 mW |
| Reverse recovery time | 4 ns |
| Forward Current | 215 mA |
| Maximum Forward Voltage (Max) | 1.25V @150mA |
| Forward Current (Max) | 215 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150℃ (Max) |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
