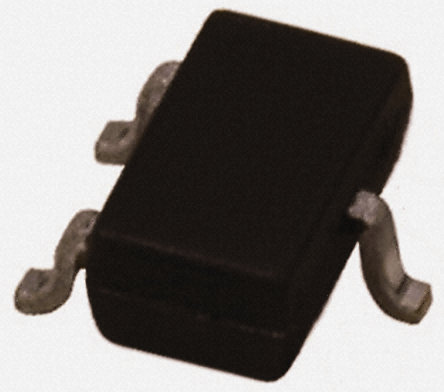

Image is for your reference only,please check specifications for details

BAV99WT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC126583
Category:
Small Signal Diode
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR BAV99WT1G Small Signal Diode, Dual Series, 70V, 715mA, 1V, 6ns, 2A
Stock Locations:
Availability:
1,515 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAV99WT1G is a dual series Switching Diode. The switching diode is designed for high speed switching applications. This dual diode device contains two diodes in series encapsulated in a SC-70/SOT-323 surface mount package.
215mA DC Forward current
450mA Repetitive peak forward current
100VDC Reverse breakdown voltage
1.5pF Capacitance
Halogen-free
ESD sensitive device, take proper precaution while handling the device.

Show

BAV99WT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Voltage Rating (DC)	70.0 V
Current Rating	215 mA
Capacitance	2 pF
Halogen Free Status	Halogen Free
Load Current	0.215 A
Number of Positions	3 Position
Forward Voltage	1.25V @150mA
Power Dissipation	270 mW
Reverse recovery time	6 ns
Forward Current	715 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	715 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	2.1 mm
Size-Width	1.24 mm
Size-Height	0.85 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
