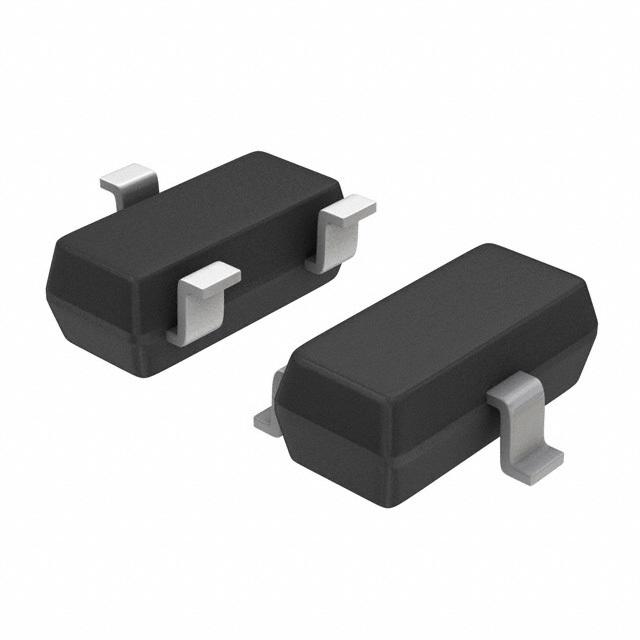

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Purpose Transistors NPN Silicon Features • Moisture Sensitivity Level: 1 • ESD Rating − Human Body Model: >4000 V ESD Rating − Machine Model: >400 V • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Show

BC847BLT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23-3
Voltage Rating (DC)	45.0 V
Current Rating	100 mA
Polarity	N-Channel
Power Dissipation	225 mW
Breakdown Voltage (Collector to Base)	50.0 V (min)
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	200 @2mA, 5V
Input Power (Max)	225 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
