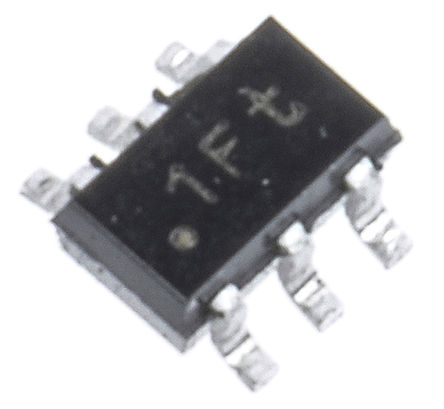

Image is for your reference only,please check specifications for details

BC847BS - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC40106327
Category:
BJT Transistor, BJT
Package:
SC-88
Datasheet:
Datasheet 3D Model
Description:
NXP BC847BS Bipolar Transistor Array, General Purpose, NPN, 45V, 0.25W(1/4W), 100mA, 200 hFE, SC-88
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BC847BS from NXP is a surface mount NPN/PNP general purpose transistor in SOT-363 (SC-88) package. This transistor is characterized with low collector capacitance, low collector to emitter saturation voltage and closely matched current gain. It reduces number of components and board space. There is no mutual interference between the transistors. Suitable for general purpose switching and amplification.
Collector to emitter voltage is 45V
Collector current (Ic) is 100mA
Current gain of 200 at VCE 5V
Power dissipation (Pd) is 250mW per transistor
Ambient temperature range from -65°C to 150°C
Collector emitter saturation voltage of 300mV at 100mA collector current
Transition frequency of 100MHz

Show

BC847BS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-88
Number of Positions	6 Position
Polarity	NPN
Power Dissipation	250 mW
hFE Min	200
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
