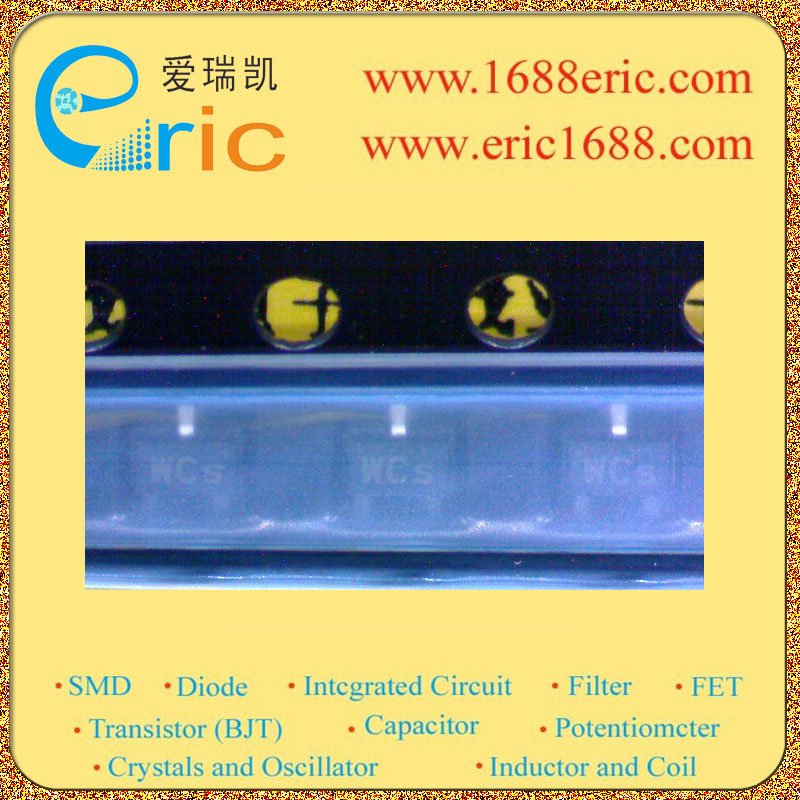

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

•Switching in circuit, inverter, interface circuit,drive circuit
•Built in bias resistor (R1= 10 kΩ, R2= 10 kΩ)
•For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package

Show

BCR133W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-323
Power Rating	0.25 W
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	30
hFE Max	30
	Show
Size-Length	2.00 mm
Size-Width	1.25 mm
Size-Height	0.90 mm
Product Lifecycle Status	End of Life
RoHS	RoHS Compliant
