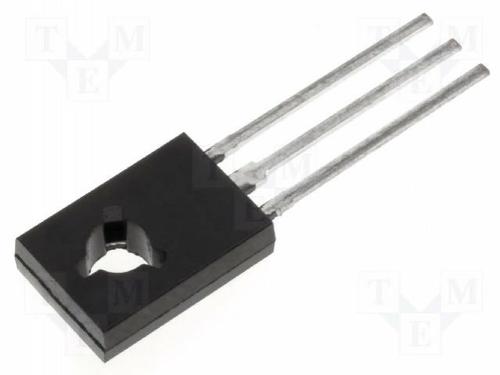

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BD678 is a PNP complementary power Darlington Transistor manufactured in Planar Base Island technology. It offers monolithic Darlington configuration with integrated anti-parallel collector-emitter diode.
Good hFE linearity
High fT frequency

Show

BD678 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	-60.0 V
Current Rating	-4.00 A
Number of Positions	3 Position
Polarity	P-Channel
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	60 V
hFE Min	750 @1.5A, 3V
Input Power (Max)	40 W
DC Current Gain (hFE)	750
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	40000 mW
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
