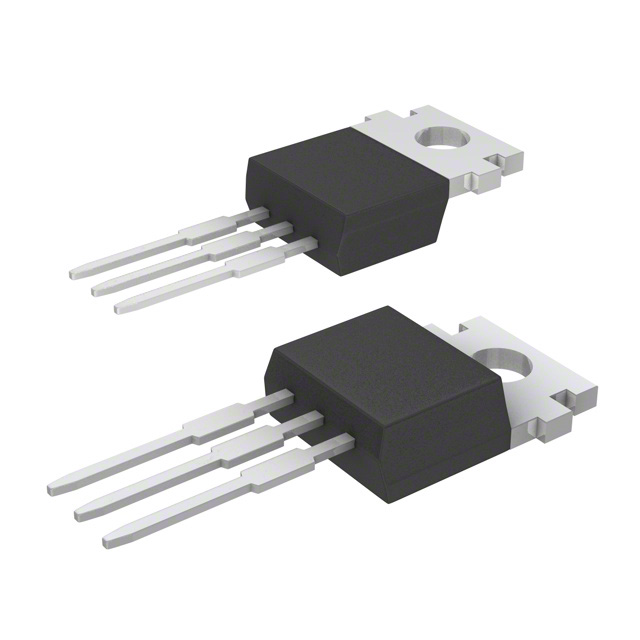

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Plastic High Power Silicon Transistor
These devices are designed for use in high power audio amplifiers utilizing complementary or quasi complementary circuits.
Features
• DC Current Gain - hFE = 30 (Min) @ IC = 2.0 Adc
• Pb-Free Packages are Available

Show

BD810 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-80.0 V
Current Rating	-10.0 A
Polarity	PNP
Power Dissipation	90.0 W
Breakdown Voltage (Collector to Base)	80.0 V
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	10A
hFE Min	15 @4A, 2V
Input Power (Max)	90 W
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
