Image is for your reference only,please check specifications for details

TMP03FT9Z - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC278837
Category:
Temperature Sensor
Package:

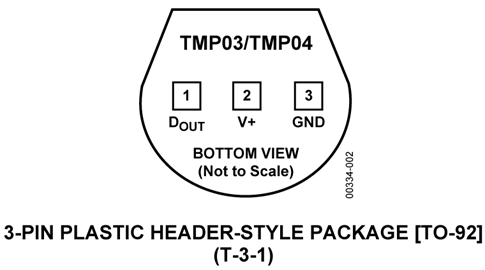

TO-92-3
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES TMP03FT9Z Temperature Sensor IC, Digital, ± 3℃, -25℃, 100℃, TO-92, 3Pins
Stock Locations:
Availability:
5 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMP03 series monolithic Temperature Detector that generate a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a voltage precisely proportional to absolute temperature which is compared to an internal voltage reference and input to a precision digital modulator. The ratiometric encoding format of the serial digital output is independent of the clock drift errors common to most serial modulation techniques such as voltage-to-frequency converters. The open-collector output of the TMP03 is capable of sinking 5mA.
Modulated serial digital output proportional to temperature
6.5mW maximum at 5V Power consumption

Show

TMP03FT9Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Supply Voltage (DC)	4.50V (min)
Supply Current	1.3 mA
Number of Positions	3 Position
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±3 ℃
Supply Voltage	4.5V ~ 7V
Supply Voltage (Max)	7 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5.21 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
