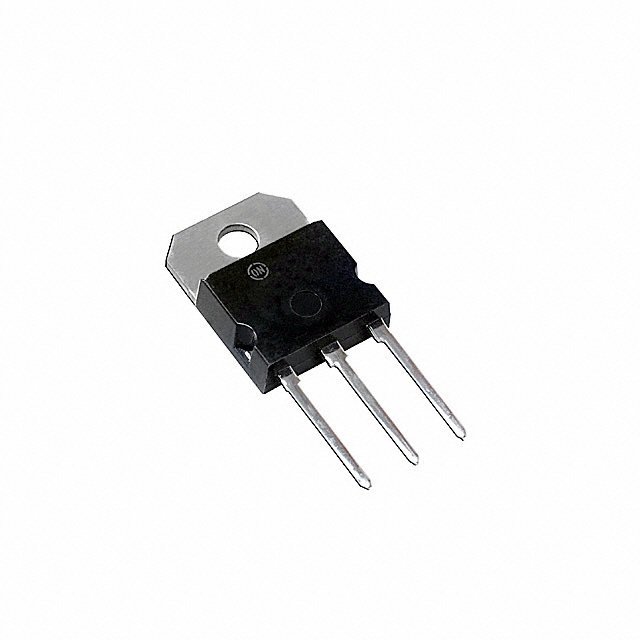

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 10 A, 100 V NPN Bipolar Power Transistor is for use as an output devices in complementary general purpose amplifier applications. The BDV65B (NPN) and BDV64B (PNP) are complementary devices.
Features
---
|
High DC Current Gain HFE = 1000 (min.) @ 5 Adc
Monolithic Construction with Built-in Base Emitter Shunt Resistors
These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Show

BDV64B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-218-3
Voltage Rating (DC)	-100 V
Current Rating	-10.0 A
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	10A
hFE Min	1000 @5A, 4V
Input Power (Max)	125 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	30
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
