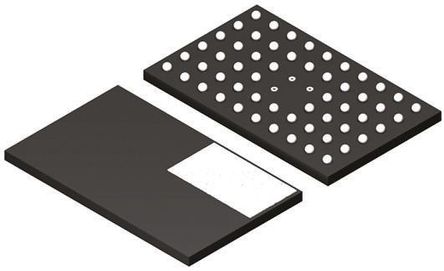

SN74AVC16T245ZQLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC16098066
Category:
Logic Controller, Logic IC
Package:
BGA-56
Datasheet:
Datasheet 3D Model
Description:
1.2V to 3.6V, 16Bit dual-supply bus transceiver with configurable voltage translation and 3-state output@
Stock Locations:
Availability:
740 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74AVC16T245ZQLR is a 16-bit dual supply Bus Transceiver with configurable voltage-level shifting and 3-state outputs. This 16-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC16T245 device is optimized to operate with VCCA/VCCB set at 1.4 to 3.6V. The device is operational with VCCA/VCCB as low as 1.2V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The SN74AVC16T245 device is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control input. The output-enable input can be used to disable the outputs so the buses effectively are isolated. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
B Port is designed to track VCCB
IOFF Supports partial-power-down mode operation
Overvoltage-tolerant inputs and outputs allow mixed-voltage-mode data communications
VCC Isolation - If either VCC input Is at GND, both ports are in the high-impedance state
Control inputs VIH/VIL levels are referenced to VCCA voltage
VCCB Accepts any supply voltage from 1.2 to 3.6V
Fully configurable dual-rail design allows port to operate over full 1.2 to 3.6V power-supply range
I/Os are 4.6V tolerant
Green product and no Sb/Br

Show

SN74AVC16T245ZQLR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	56 Pin
Case/Package	BGA-56
Supply Voltage (DC)	1.20V ~ 3.60V
Number of Circuits	2 Circuit
Number of Channels	16 Channel
Number of Positions	56 Position
Number of Bits	16 Bit
Propagation Delay Max (tpd)	5.00 ns
Voltage Nodes	1.20 V, 1.50 V, 1.80 V, 2.50 V, 3.30 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	1.2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.2 V
	Show
Size-Length	7 mm
Size-Width	4.5 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
