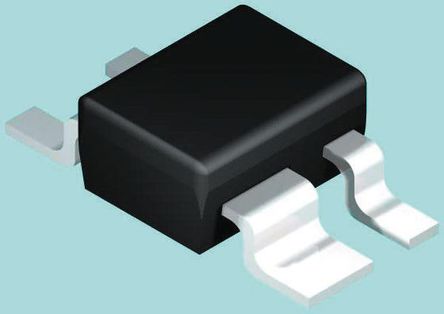

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- NPN silicon planar epitaxial transistors in plastic, 4-pin dual-emitter SOT343N and SOT343R packages.
- FEATURES
- • High power gain
- • Low noise figure
- • High transition frequency
- • Gold metallization ensures excellent reliability.
- APPLICATIONS
- They are intended for applications in the RF front end, in wideband applications in the GHz range such as analog and digital cellular telephones, cordless telephones (CT2, CT3, PCN, DECT, etc.), radar detectors, pagers, satellite television tuners (SATV), MATV/CATV amplifiers and repeater amplifiers in fibre-optic systems.
BFG540W Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-343 |
| hFE Min | 100 |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1 mm |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
