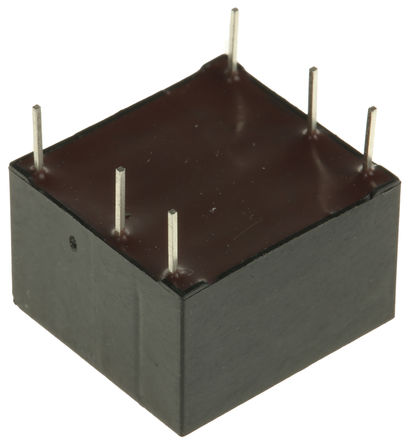

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IT pulse transformers are designed to offer you galvanic isolation for transformer coupled gate drives. The IT series provides negligible delays and the possibility of voltage scaling. They are available with single or double secondary winding for multiple gate drives. Choosing the IT product line brings you the rapid availability of a standard gate drive transformer. A wide selection on turns ratio, ignition current and voltages are designed to offer you the desired standard product.
IT244 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Frequency | 40 kHz |
| Inductance | 15 mH |
| Fall Time (Max) | 700 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 17.6 mm |
| Size-Width | 16.7 mm |
| Size-Height | 11.3 mm |
| Weight | 5.7 g |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
