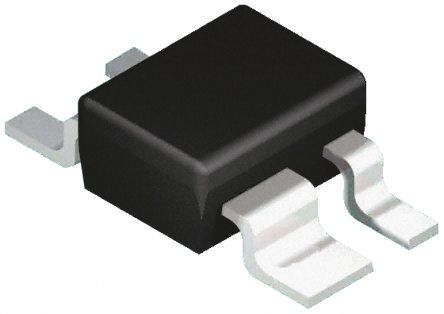

Image is for your reference only,please check specifications for details
- BFP420H6327XTSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC6589940
-
Category:BJT Transistor, BJT
-
Package:SOT-343-4
-
Datasheet:Datasheet 3D Model
-
Description:Trans RF BJT NPN 4.5V 0.06A 210mW Automotive 4Pin(3+Tab) SOT-343 T/R
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.45
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- For high gain low noise amplifiers
- For oscillators up to 10 GHz
- Noise figure F = 1.1 dB at 1.8 GHz outstanding Gms = 21 dB at 1.8 GHz
- Transition frequency fT = 25 GHz
- Gold metallization for high reliability
- SIEGET® 25 GHz fT - Line
- Pb-free (RoHS compliant) package
- Qualification report according to AEC-Q101 available
BFP420H6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-343-4 |
| Frequency | 25000 MHz |
| Number of Positions | 4 Position |
| Polarity | NPN |
| Power Dissipation | 210 mW |
| Breakdown Voltage (Collector to Emitter) | 5 V |
| Gain | 21 dB |
| hFE Min | 60 @20mA, 4V |
| Input Power (Max) | 160 mW |
| DC Current Gain (hFE) | 95 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 210 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.8 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
