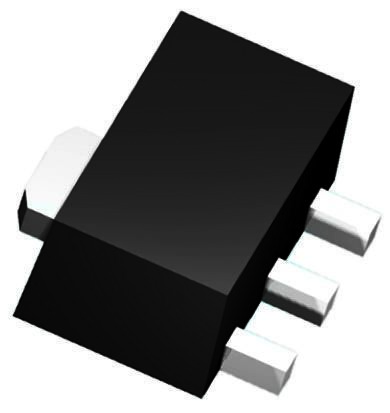

Image is for your reference only,please check specifications for details

BFQ19SH6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC10705161
Category:
BJT Transistor, BJT
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
Trans RF BJT NPN 15V 0.12A 1000mW Automotive 4Pin(3+Tab) SOT-89 T/R
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.09

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
For low noise, low distortion broadband amplifiers in antenna and telecommunications systems up to 1.5 GHz at collector currents from 10 mA to 70 mA
Pb-free (RoHS compliant) package
Qualification report according to AEC-Q101 available

Show

BFQ19SH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Frequency	5.5 GHz
Number of Positions	3 Position
Power Dissipation	1 W
Input Capacitance	3.9 pF
Gain Bandwidth Product	5.5 GHz
Breakdown Voltage (Collector to Emitter)	15 V
Gain	7 dB
hFE Min	70
hFE Max	140
Input Power (Max)	1 W
DC Current Gain (hFE)	70
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	4.5 mm
Size-Width	2.5 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
