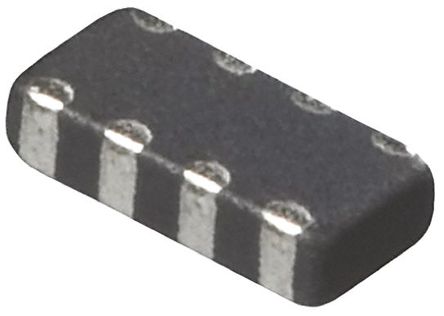

Image is for your reference only,please check specifications for details
- BLA31AG121SN4D - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC9402189
-
Category:Ferrite
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:120Ω Impedance Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad Surface Mount 150mA 4 Lines 200mOhm Max DCR -55℃ ~ 125℃
-
Stock Locations:
-
Availability:1,859 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.24
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Feature a1/2 DC resistance than conventional type by latest technology New ferrite material Optimum ferrite firing condition Fine piling technology Advanced coil pattern design technology aImproved stability of performance at heat shock aWide line-up from 10 to 1000ohm(@100MHz) useful for signal line Advantage aHigh Rated Current Good for Miniaturize of high power equipment aLower Voltage down at Ferrite bead Good for Battery driven equipment by saving running voltage margin aHigher Reliability
BLA31AG121SN4D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Frequency | 100 MHz |
| Current Rating | 150 mA |
| Number of Circuits | 4 Circuit |
| Resistance | 120 Ω |
| Shielding | No |
| Impedance | 120 Ω |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤200 mΩ |
| Current Rating (Max) | 150 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 200 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.8 mm |
| Size-Height | 1 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
