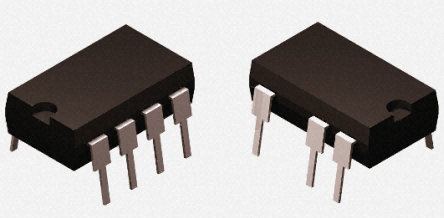

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BM2P013 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-8
Number of Outputs	1 Output
Output Current	0.95 mA
Breakdown Voltage	650 V
Switching Frequency	65 kHz
Duty Cycle	75 %
Input Voltage (Max)	26 V
Input Voltage (Min)	8.9 V
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	8.9V ~ 26V
	Show
Size-Length	9.3 mm
Size-Width	6.45 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
