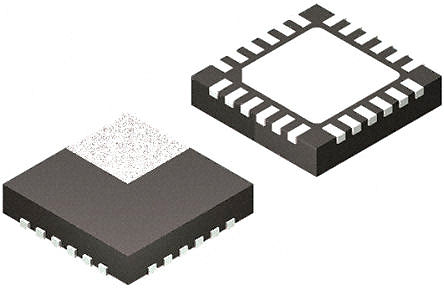

Image is for your reference only,please check specifications for details
- BQ24192RGET - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4068178
-
Category:Battery Management IC
-
Package:VQFN-24
-
Datasheet:Datasheet 3D Model
-
Description:USB/AC Adapter Charger Li-Ion/Li-Pol 4.5mA 3.5V to 4.4V 24Pin VQFN EP T/R
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.36
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BQ24192RGET is a highly-integrated switch-mode Battery Charge and System Power Path Management Device for single cell Li-ion and Li-polymer battery in a wide range of tablet and other portable devices. Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase. The I2C serial interface with charging and system settings makes the device a truly flexible solution. The device supports a wide range of input sources, including standard USB host port, USB charging port and high power DC adapter. To set the default input current limit. It takes the results from detection circuit in the system, such as USB PHY device. It compliant with the USB 2.0 and USB 3.0 power specifications with input current and voltage regulation and meets USB On-the-Go operation power rating specification by supplying 5V on the VBUS with a current limit up to 1.3A.
- Accelerate charge time by battery path impedance compensation
- Ideal diode operation in battery supplement mode
- Battery charge enable
- Battery charge preconditioning
- Charge termination and recharge
- ±0.5% Charge voltage regulation
- ±7% Charge current regulation
- Power path management
- Synchronous switching MOSFETs
- Thermal regulation and thermal shutdown
- Input system over-voltage protection
- Low battery leakage current and support shipping mode
- Charge status outputs for LED or host processor
- Green product and no Sb/Br
- Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
BQ24192RGET Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | VQFN-24 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 17.0 V |
| Output Voltage | 3.5V ~ 4.4V |
| Output Current | 4.5 mA |
| Number of Positions | 24 Position |
| Switching Frequency | 1.50 MHz |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 3.9 V |
| Output Current (Min) | 500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.9V ~ 17V |
| Input Voltage | 17 V |
| Show | |
| Size-Length | 4.15 mm |
| Size-Width | 4.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
